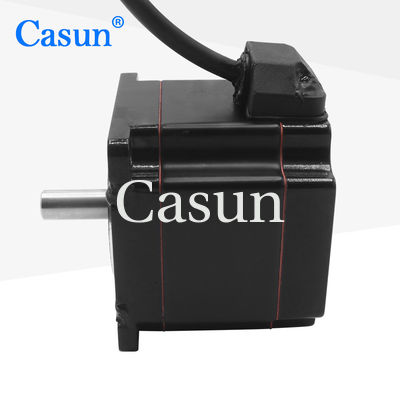

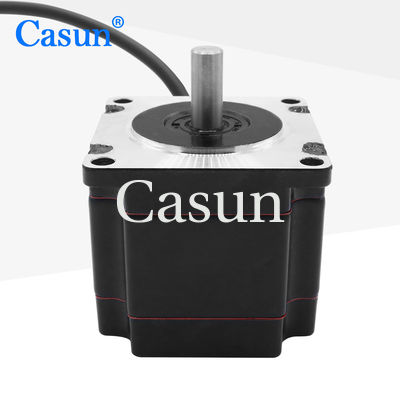

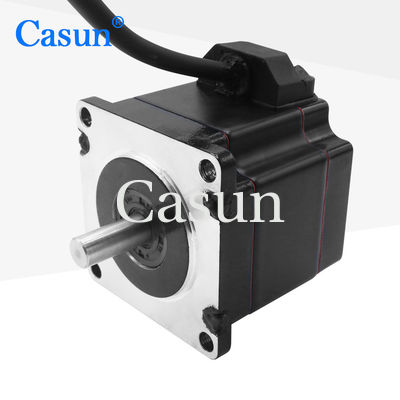

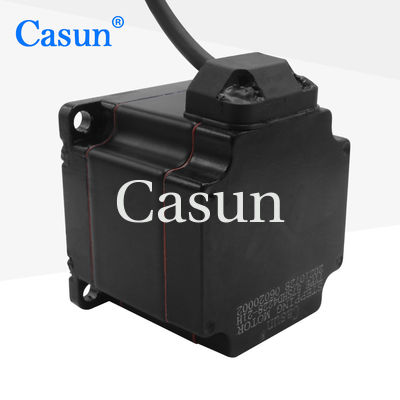

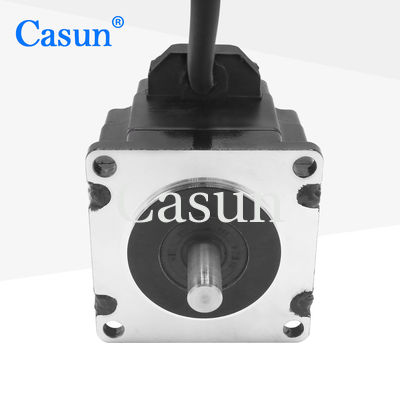

De 57mm Hybride Stepper Motor kan de omwentelingshoek precies controleren, geschikt voor gebieden die high-precision controle vereisen
De reactiesnelheid van het millisecondenniveau, geschikt voor situaties met de vereisten van de hoge snelheidsreactie
Eigenschappen:
Stapengel |
1.8 ° |
Framgrootte |
57 mm |
Aantal Fase |
tweefasen |
Geschatte Stroom |
2.5 A |
Het houden van Torsie |
1100 mN.m |
Weerstand |
1,15 ohm |
Inductantie |
3.3 MH |
Rotorinertie |
72 g-cm ² |
Motorgewicht |
0,62 kg |
Aantal lood |
4 |
Verbinding |
Bipolair |
Staphoek: 1.8°
Maximumtemperatuur: 80°C maximum
Omgevingstemperatuur: -20 °C aan 50°C
Opslagtemperatuur -20: °C aan 100°C
Vochtigheidswaaier (%): 85% of non-condensing minder,
De Isolatie van de magneetdraad: Klasse B 130 gr.C.
Isolatieweerstand: 100M Ohm bij 500 VDC
Diëlektrische Sterkte: 500 VDC voor 1 min
Model | Het houden van Torsie | Staphoek | Lengte | Type van Schacht | Geschatte Stroom |
57SHD4013-21B | 0.6N.m | 1.8° | 41mm | D schacht-21mm | 1.0A |
57SHD4415-21B | 1.1N.m | 1.8° | 54mm | D schacht-21mm | 3.0A |
57SHD4816-21B | 2.0N.m | 1.8° | 76mm | D schacht-21mm | 3.0A |
57SHD4913-21B | 2.5N.m | 1.8° | 83mm | D schacht-21mm | 3.0A |
57SHD4934-20B | 3.0N.m | 1.8° | 100mm | D schacht-20mm | 3.0A |
