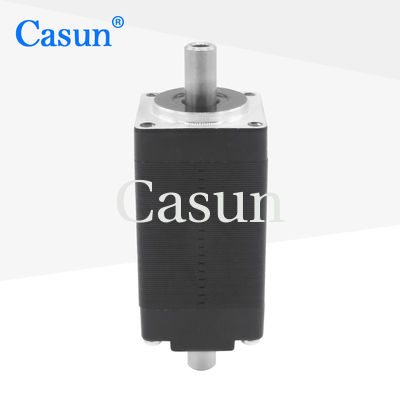

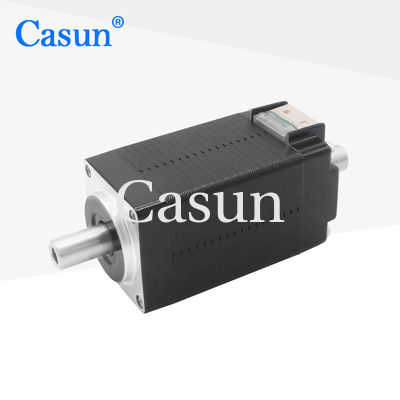

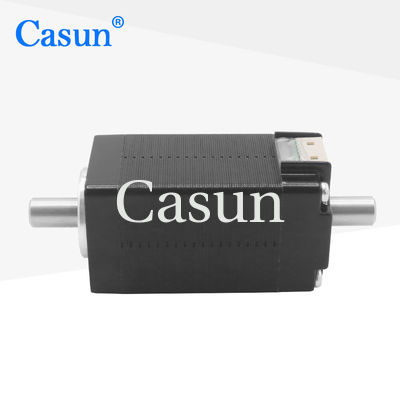

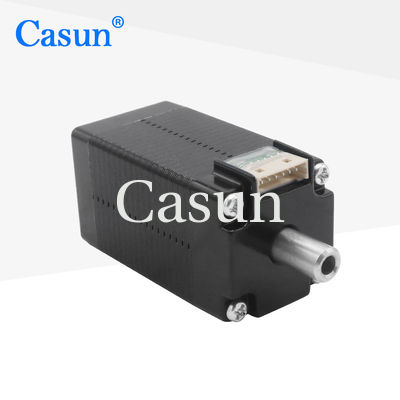

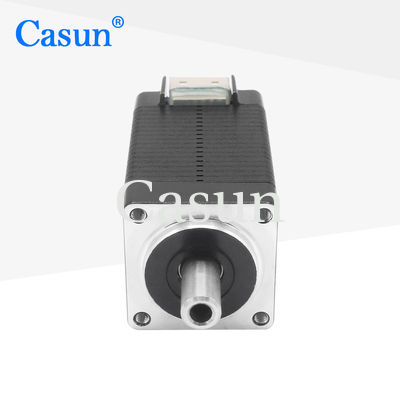

1.8 Degree 2 Phase Nema 8 20X20X38mm Stepper Motor Dual Hollow Shaft 0.6A 32mN.m

The dual axis design allows the motor to provide power in both directions simultaneously, which is very useful in some applications that require bidirectional motion.

Generally, one axis is used for rotation, while the other axis can be used for transmitting signals, pumping gas or liquid, etc.

Features:

• Versions in unipolar or bipolar are offered

• Professional drivetrain solution specialist

• Available in variations with a single or double shaft

• We offer custom services and accept contract manufacturing

• Upon request, modifications

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
